AI FEATURES

AI FEATURES

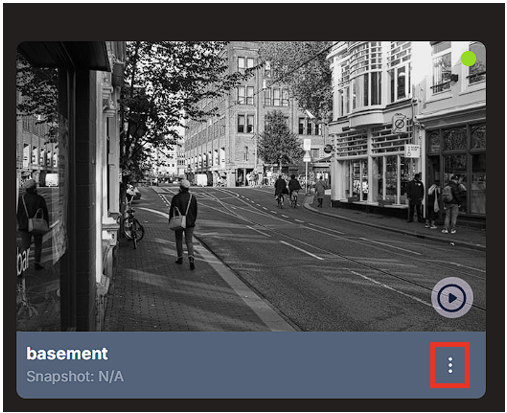

     Click the "3 DOTS" button.

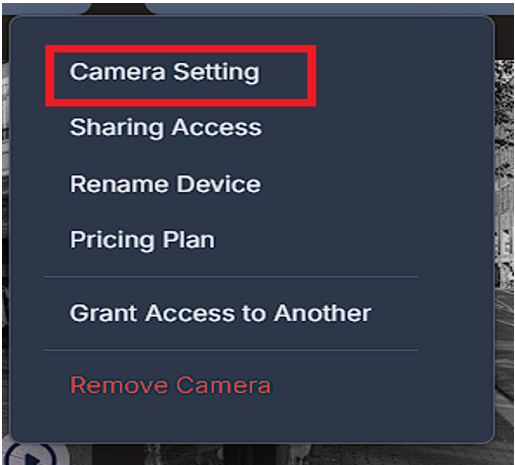

     Click the "Camera Setting" button.




  Open the Camera Settings menu.

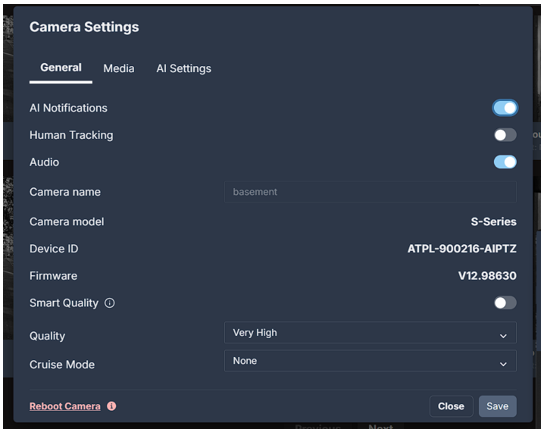

  Go to the General tab.

  Locate the AI Notifications option.

  Toggle the switch off/on

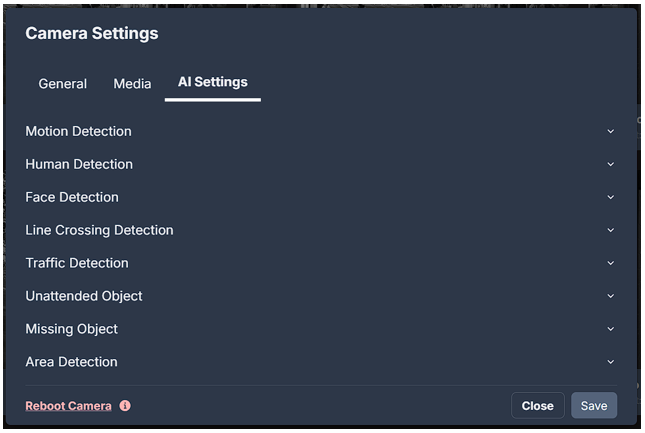

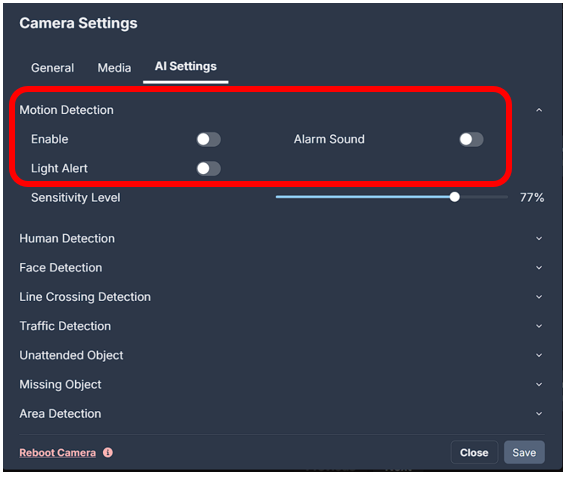

Click the “AI Settings” button








1. Enable Motion Detection:

  • Go to AI Settings.
  • Locate the Motion Detection section.
  • Toggle Enable to ON (switch turns blue).

2. Enable Light Alert:

  • Under Motion Detection, find Light Alert.
  • Toggle it to ON (switch turns blue).

3. Enable Alarm Sound:

  • Under Motion Detection, find Alarm Sound.
  • Toggle it to ON (switch turns blue).

4. Adjust Sensitivity Level (Optional):

  • Use the slider to set the detection sensitivity level as needed.

5. Save Settings:

  • Click Save to apply the changes.



Same goes for Human Detection and Face Detection

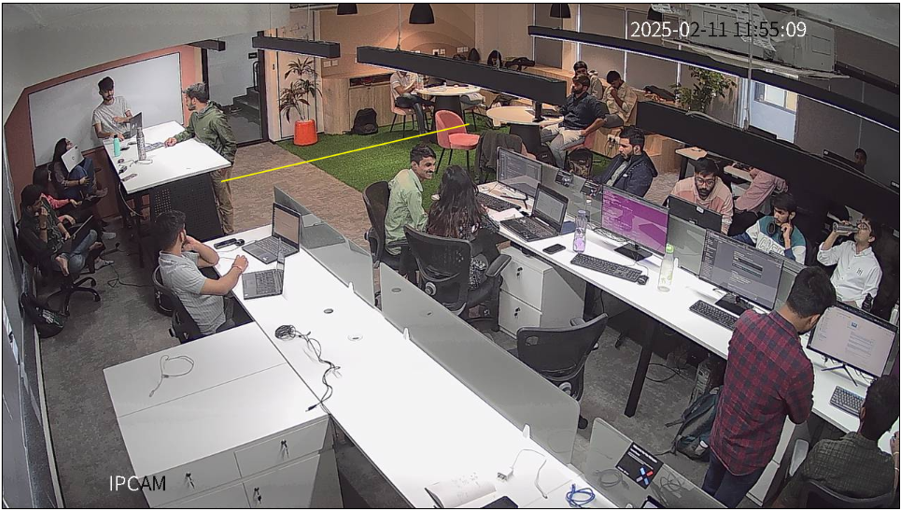

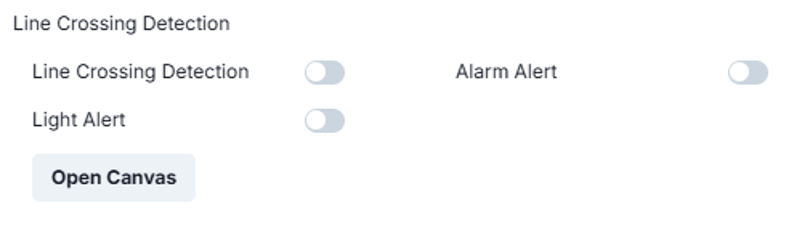

· Line Crossing Detection (Toggle Switch) – This feature allows the camera to detect when an object or person crosses a predefined virtual line. It is typically used for security purposes, such as monitoring restricted areas or detecting intrusions.

· Alarm Alert (Toggle Switch) – When enabled, this setting triggers an alarm when the line crossing detection is activated.

· Light Alert (Toggle Switch) – This option, when enabled, activates a light alert in response to detected line crossings.

· Open Canvas (Button) – Clicking this button likely opens an interface where users can configure and draw the virtual line that the camera will monitor.

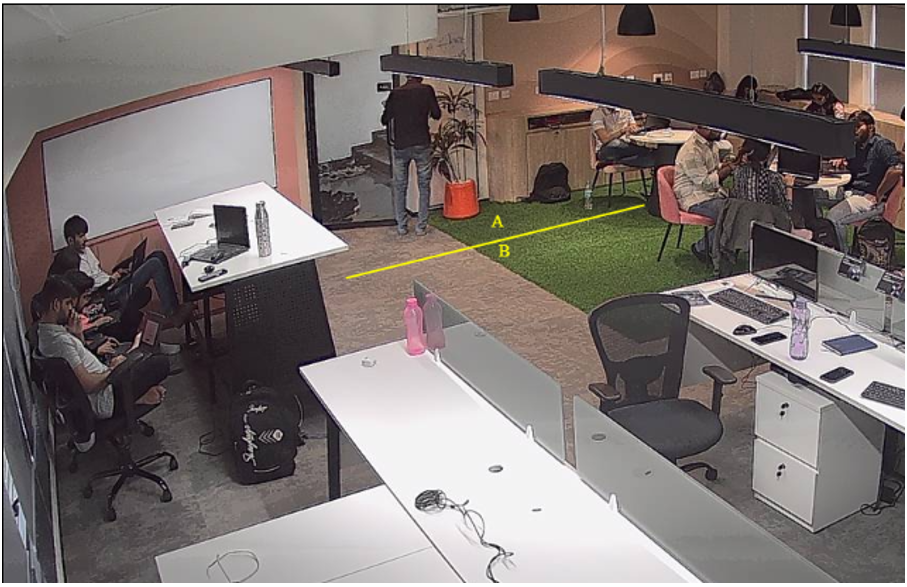

A → B – Detects movement only when an object crosses the line from point A to point B.

B → A – Detects movement only when an object crosses the line from point B to point A.
Both – Detects movement in both directions, regardless of whether an object moves from A to B or B to A.

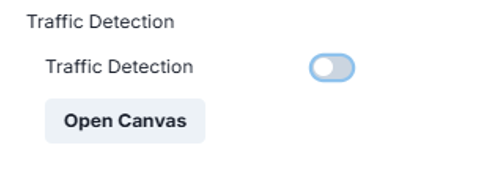

Traffic Detection in this context likely works similarly to Line Crossing Detection, but it is specifically designed for monitoring and counting vehicles or objects passing through a defined virtual line.

· Enabling Traffic Detection – When the toggle switch is turned on, the camera starts detecting and analyzing traffic movement.

· Open Canvas – This allows users to set up and draw a virtual line or area for detection, defining where the traffic should be monitored.

· Traffic Counting – The camera counts the number of vehicles or objects crossing the defined line. If positioned at the front of a road, entrance, or checkpoint, it will show real-time traffic counts based on movement direction.


A → B – Detects movement only when an object crosses the line from point A to point B.

B → A – Detects movement only when an object crosses the line from point B to point A.

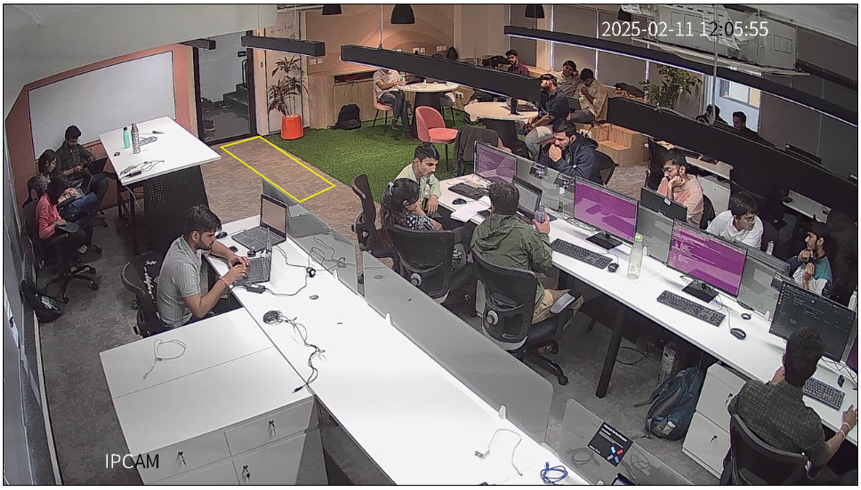

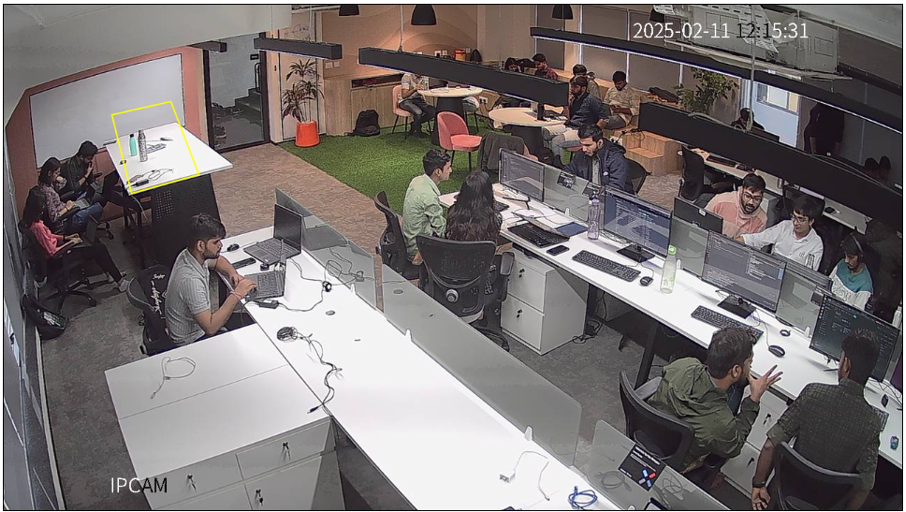

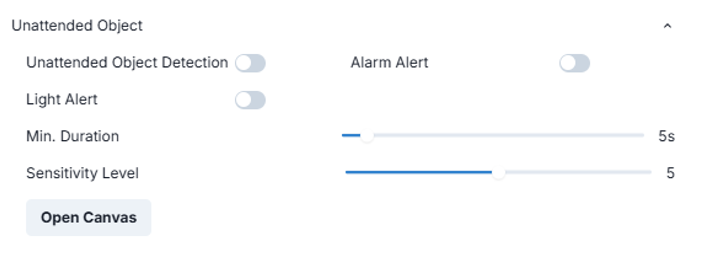

· Unattended Object Detection (Toggle Switch) – Enables or disables the detection of objects that remain in the scene without movement for a specified duration.

· Alarm Alert (Toggle Switch) – When enabled, an alarm is triggered if an unattended object is detected.

· Light Alert (Toggle Switch) – If activated, a light alert is triggered in response to an unattended object.

· Min. Duration (Slider Control) – Defines the minimum time (in seconds) an object must remain in the area before being considered unattended.

· Sensitivity Level (Slider Control) – Adjusts the sensitivity of detection, which determines how easily the system classifies an object as unattended.

· Open Canvas (Button) – Opens an interface for configuring the detection area or setting parameters for unattended object detection.

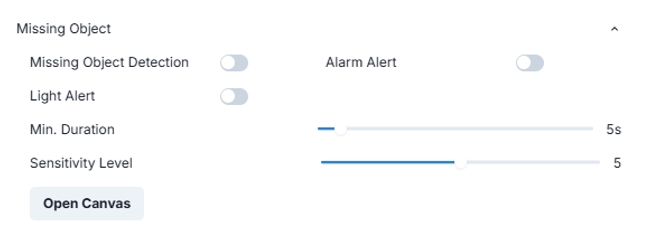

· Missing Object Detection (Toggle Switch) – Enables or disables the detection of objects that have been removed from the monitored area.

 · Alarm Alert (Toggle Switch) – When enabled, an alarm is triggered if an object goes missing.

 · Light Alert (Toggle Switch) – If activated, a light alert is triggered in response to a missing object.

 · Min. Duration (Slider Control) – Defines the minimum time (in seconds) that an object must be absent before being classified as missing.

 · Sensitivity Level (Slider Control) – Adjusts the detection sensitivity, which determines how easily the system identifies an object as missing.

 · Open Canvas (Button) – Opens an interface for configuring the detection area or setting parameters for missing object detection.

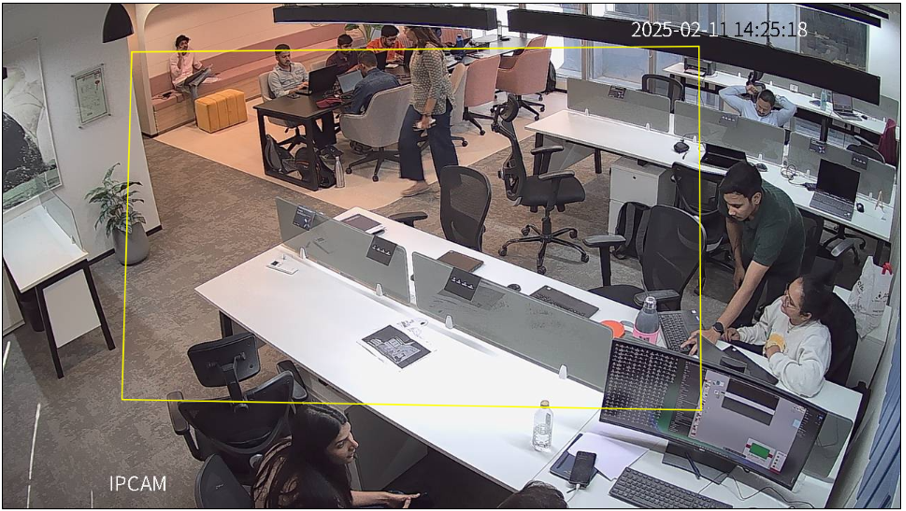

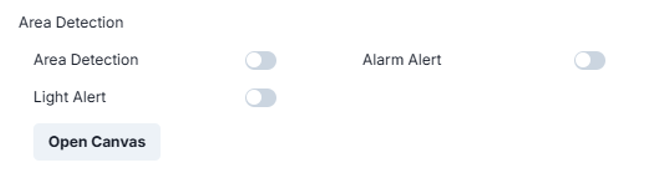

· Area Detection (Toggle Switch) – Enables or disables the monitoring of a defined area for movement or intrusion.

· Alarm Alert (Toggle Switch) – When enabled, an alarm is triggered if activity is detected within the monitored area.

· Light Alert (Toggle Switch) – If activated, a light alert is triggered in response to detected movement.

· Open Canvas (Button) – Opens an interface for configuring the detection area, allowing users to define a specific zone for monitoring.
